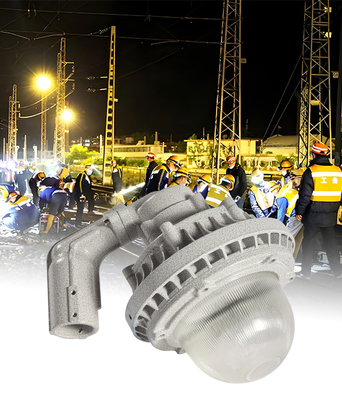

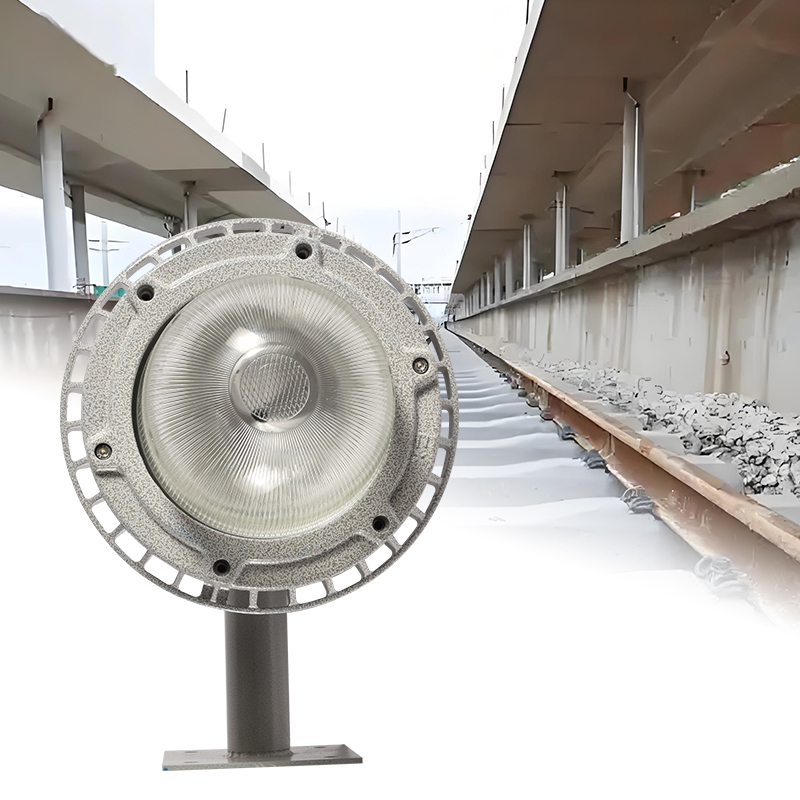

ATEX Led Explosion Proof Lighting Professional Explosion Proof Lamps 120w
商品の詳細:
| 起源の場所: | 中国本土 |
| ブランド名: | Finboard |
| 証明: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| モデル番号: | SMSF50-B |
お支払配送条件:
| 最小注文数量: | 10pcs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | ボックスパッケージ+バブルまたはカスタマイズ |
| 受渡し時間: | 25-30daysまたは確認するため |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 5000pcs/月 |
|
詳細情報 |
|||
| キーワード: | LED 電車台照明 | 力率: | ≥0.95 |
|---|---|---|---|
| 光束: | 3900-7800lm | 保護レベル: | IP65 |
| 色温度: | 2700-6500K | カラーレンダリングインデックス: | 80ra |
| 労働生活: | ≥50000H | 管理の標準: | GB7000,GB 24906,GB/T 24907 など |
| ハイライト: | ATEX LED explosion proof lamp,120W explosion proof lighting,professional explosion proof LED lamps |
||
製品の説明
ATEX Led Explosion Proof Lighting Professional Explosion Proof Lamps 120w
Product Specifications
| Power Factor | ≥0.95 |
| Luminous Flux | 3900-7800lm |
| Protection Level | IP65 |
| Color Temperature | 2700-6500K |
| Color Rendering Index | 80Ra |
| Working Life | ≥50000H |
| Executive standards | GB7000, GB 24906, GB/T 24907 etc. |
Detailed Specifications
| Model | Industrial LED Explosion-Proof Light |
| Power Options | 120W |
| Material | Aluminum Alloy + Tempered Glass |
| IP Rating | IP65 (Dustproof & Waterproof) |
| Explosion-Proof Cert. | ATEX, IECEx (Zone 1/2, 21/22) |
| Luminous Efficiency | 100-120 lm/W |
| Color Temperature | 5500-6500K (Daylight White) |
| CRI (Color Rendering) | ≥80 (True Color Visibility) |
| Input Voltage | AC 85-265V (50/60Hz) |
| LED Chip | High-Quality Lumileds/SMD 3030 |
| Lifespan | 30,000+ hours |
| Warranty | 3 Years (Extendable to 5 Years) |
| Working Temperature | -30°C to +60°C |
| Mounting Options | Bracket, Pendant, Ceiling |
Key Advantages
1. Superior Explosion-Proof & Weatherproof Design
- ATEX/IECEx Certified - Safe for Zone 1, Zone 2 (flammable gases) & Zone 21, Zone 22 (combustible dust)
- IP65 Waterproof & Dustproof - Resists high-pressure water jets, corrosive chemicals, and dust ingress
- Rugged Aluminum Housing - Aircraft-grade aluminum alloy ensures heat dissipation, impact resistance, and corrosion protection
- Tempered Glass Lens - 5mm reinforced glass prevents shattering in explosive atmospheres
2. High-Efficiency LED Lighting for Hazardous Areas
- Bright & Uniform Light Output - 100-120 lm/W efficiency for optimal visibility in dark industrial spaces
- Multiple Power Options (30W/50W/80W/120W) - Customizable for different workspace requirements
- 5500-6500K Cool White Light (CRI ≥80) - Reduces eye strain and enhances safety in critical operations
- 30,000+ Hours Lifespan - 3-5x longer than traditional HID lamps, reducing replacement costs
3. Wide Voltage & Extreme Temperature Resistance
- Universal Voltage (AC 85-265V, 50/60Hz) - Compatible with global power grids
- Operates in -30°C to +60°C - Ideal for Arctic oil rigs, desert refineries, and humid chemical plants
4. Easy Installation & Low Maintenance
- UFO High Bay & Flood Light Designs - Flexible mounting (bracket, pendant, or ceiling)
- Tool-Free Modular Assembly - Quick installation without specialized labor
- Maintenance-Free Operation - Sealed design prevents dust/water damage, minimizing downtime
5. Trusted for Critical Industrial Applications
- Oil & Gas - Drilling platforms, refineries, pipelines
- Chemical & Pharmaceutical - Acid-resistant lighting for labs and storage
- Mining & Tunneling - Explosion-proof lighting in high-dust environments
- Gas Stations & Ports - Safe illumination for fuel-handling zones
