IP65 100W LED Explosion-Proof Lights for Oil Fields Petrochemical Drilling Chemical Enterprises
商品の詳細:
| 起源の場所: | 中国本土 |
| ブランド名: | Fins board, BOCAQ |
| 証明: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
お支払配送条件:
| 最小注文数量: | 10pcs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | ボックスパッケージ+バブルまたはカスタマイズ |
| 受渡し時間: | 25-30daysまたは確認するため |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 5000pcs/月 |
|
詳細情報 |
|||
| 製品名: | 産業耐圧防爆照明 | 導かれた: | SMD 3030/2835 |
|---|---|---|---|
| 光効率: | 100-120lm/w | 材料: | アルミ+PCレンズ |
| 電圧: | AC85-265V | 保証: | 3/5年 |
| 防爆シグナル: | Exde IIC T6 Gb/Ex tD A21 IP65 T80°C | 防水: | IP65 |
| ビーム角度: | 120° | Anti-corrosion等級: | WF2 |
| ハイライト: | IP65 LED explosion-proof light,100W explosion-proof lighting for oil fields,petrochemical drilling LED explosion-proof lights |
||
製品の説明

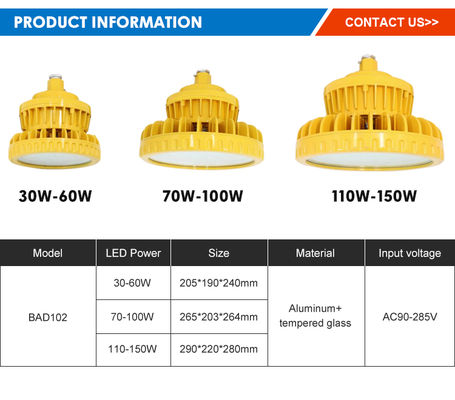

| Specification | Details |
|---|---|
| Surface color | Yellow |
| Product name | LED explosion proof light |
| Power | 30W 40W 50W 60W 70W 80W 100W 120W 150W 200W |
| Beam Angle | 60°,90°,120° |
| IP Rating | IP66 |
| PF | ≥0.97 |
| CRI (Ra>) | 80 |
| Lamp Luminous Efficiency(lm/w) | 130 |
| Working Temperature(℃) | -45℃~80℃ |
| Material | Aluminium alloy explosion-proof cover |
| LED chip | LUMILEDS |
| Warranty | 5years |
| Input Voltage(V) | AC85-265V |
| Color Temperature | 2700-6500K |
| Frequency Range | 50-60HZ |

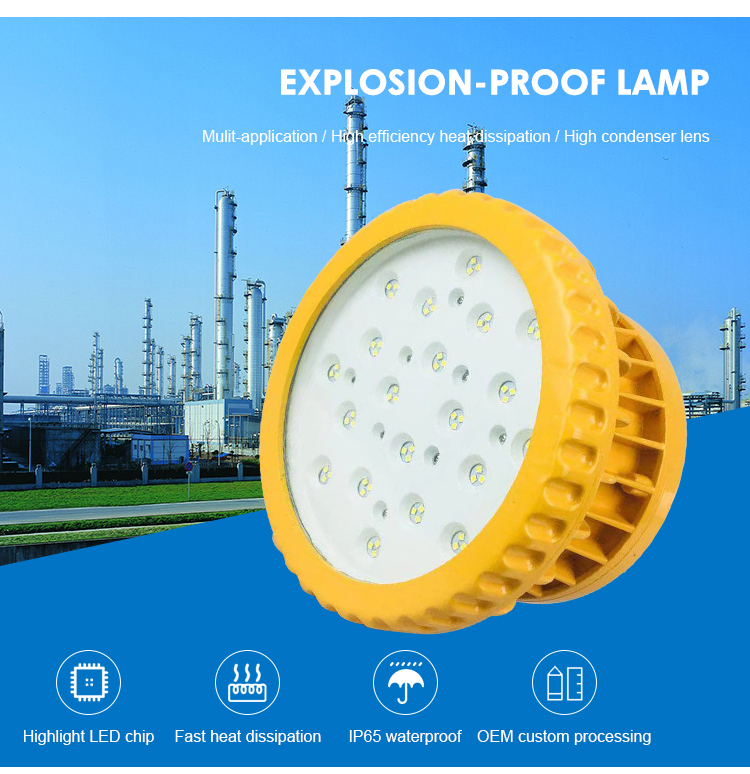

This series of LED Explosion Proof Lights is designed with an IP65 rating for effective waterproof and dustproof performance in harsh environments. Certified with Exd IIC T6 explosion-proof standard, it ensures safe operation in hazardous locations. The light is available in multiple power options including 30W, 60W, 70W, 100W, 120W, and 150W to meet various illumination needs.
Our Explosion Proof LED Floodlight features a robust die-cast aluminum alloy housing with a high-pressure electrostatic spray coating, offering excellent corrosion resistance. The III cavity separation structure effectively isolates the light source, power supply, and wiring, enhancing safety and reliability. With a professional secondary optical system and tempered glass lens, it provides uniform and comfortable lighting. The built-in constant current and voltage power supply ensures stable performance with a high power factor of over 0.95.
- The explosion proof led light source cavity is made up of multiple LED beads with a long service life and high luminous efficiency; the use of nano-reflective cups greatly improves the efficiency of the luminaire, with higher luminous efficiency.
- Industrial led light explosion proof exposed fasteners are all made of stainless steel screws, which are highly resistant to corrosion and never rust.
- Explosion-proof lights can be fitted with emergency devices on request, automatically switching to emergency lighting when the power supply is cut off.
- Explosion Proof light 50W 100W 150W 200W 240W Tempered glass is available in either frosted or clear versions. Flat and convex glass.
Ceiling-mounted, boom-mounted, wall-mounted, parapet-mounted, bent-pole-mounted and other installation options are available.
Used where destruction, damage and explosion may occur. Refineries, fuel storage, remote locations, oil exploration, oil refining, chemical industry, military and other dangerous environments and offshore oil platforms oil tankers, etc.
