300W Explosion Proof LED Flood Light ATEX Zone 39000lm IP66 Die-Cast Aluminum Lighting
商品の詳細:
| 起源の場所: | 広東省、中国 |
| ブランド名: | Fins board, BOCAQ |
| 証明: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| モデル番号: | EPFL-300W |
お支払配送条件:
| 最小注文数量: | 10個 |
|---|---|
| 価格: | USD 380-520 / Piece |
| パッケージの詳細: | ボックスパッケージ+バブルまたはカスタマイズ |
| 受渡し時間: | 10-15 日または確認 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 5000個/月 |
|
詳細情報 |
|||
| 力: | 300W | 光束: | 39000lm |
|---|---|---|---|
| 効能: | 130lm/W | 色温度: | 5000K |
| ビーム角度: | 120° | 入力電圧: | AC100-277V |
| LEDチップ: | ブリッジラックス SMD 3030 | CRI: | 70以上 |
| 力率: | ≥0.95 | IP等級: | IP66 |
| IKの評価: | IK08 | ハウジング材質: | アルミダイカスト ADC12 |
| レンズ材質: | 強化ガラス 5mm | 動作温度: | -40℃～+60℃ |
| 取り付けオプション: | 調整可能なブラケット、ポールマウント、天井マウント | 証明: | ATEX II 2G Ex d IIC T6 Gb / Ex tb IIIC T85°C Db |
| 寿命: | ≧50,000時間 L70 | 保証: | 5年 |
| ハイライト: | 300W explosion proof LED flood light,ATEX Zone LED flood lighting,IP66 die-cast aluminum flood light |
||
製品の説明

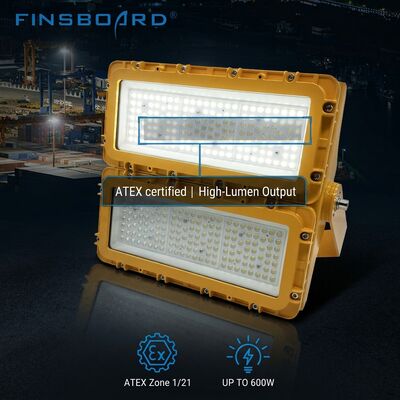

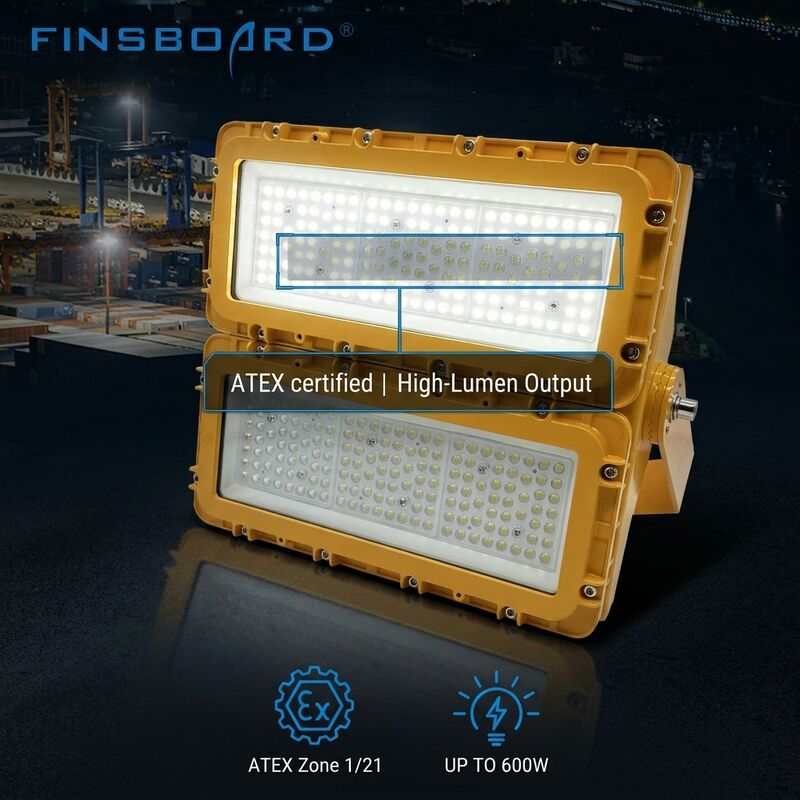

300W Explosion Proof LED Flood Light ATEX Zone 39000lm IP66 Die-Cast Aluminum Lighting
The EPFL-300W-Z1 is a high-power 300W explosion proof LED flood light engineered for demanding industrial environments requiring ATEX Zone 1 and Zone 2 certification. With an impressive 39000lm luminous output and 130lm/W efficacy, this floodlight delivers exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 300W High Power Output - 39000lm total luminous flux with 130lm/W efficacy, outperforming traditional HID equivalents
- ATEX Certified - ATEX II 2G Ex d IIC T6 Gb / Ex tb IIIC T85°C Db for Zone 1, Zone 2 gas and Zone 21, Zone 22 dust atmospheres
- Robust Die-Cast Aluminum Housing - ADC12 aluminum alloy with anti-corrosion powder coating for long-term outdoor durability
- IP66 Weatherproof - Fully sealed against dust ingress and powerful water jets, suitable for the harshest environments
- 5mm Tempered Glass Lens - High-transmittance glass with IK08 impact resistance rating
- Bridgelux SMD 3030 LEDs - Premium LED chips delivering stable 5000K cool white light with CRI ≥70
- Wide 120° Beam Angle - Optimal light distribution for large-area coverage in refineries, chemical plants, and offshore platforms
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
Applications
Ideal for ATEX Zone 1 and Zone 2 classified areas including:
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
- Grain silos and flour mills (dust explosive atmospheres)
- Coal mining preparation plants
Technical Specifications
| Model Number | EPFL-300W-Z1 |
| Power Consumption | 300W |
| Luminous Flux | 39000lm |
| Efficacy | 130lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Bridgelux SMD 3030 |
| CRI | ≥70 |
| Power Factor | ≥0.95 |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Housing Material | Die-Cast Aluminum ADC12 |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +60°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | ATEX II 2G Ex d IIC T6 Gb / Ex tb IIIC T85°C Db |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Why Choose ECER 300W Explosion Proof Flood Light?
As a leading manufacturer of hazardous area lighting solutions, ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each EPFL-300W-Z1 unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification. Our 5-year warranty reflects confidence in the long-term reliability of our 300W explosion proof flood light series.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
