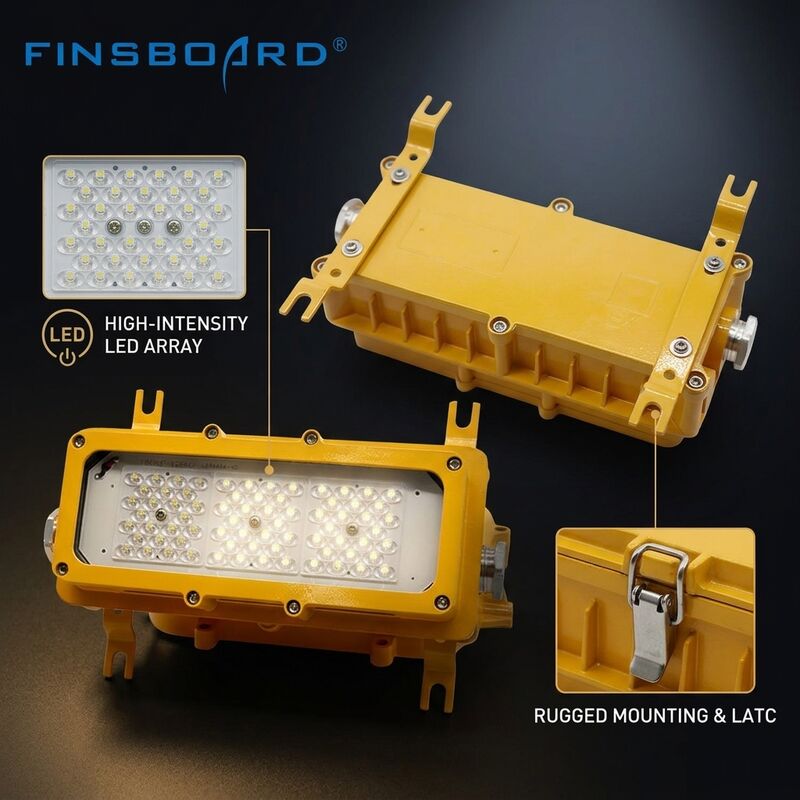

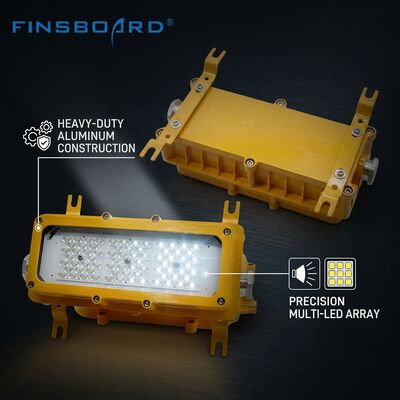

50000H Long-Life 300W LED Explosion Proof Light 30 60 90 Beam LUMILEDS LM-80 ATEX IIb T6 IP65 Hazardous Area Fixture
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | RFEPL |
| 証明: | CE, ROHS, CCC, ATEX |
| モデル番号: | RFEPL8280-300W-MB |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | USD 309-599/Piece |
| パッケージの詳細: | EPE フォーム内側保護付き K=K 輸出カートン |
| 受渡し時間: | 15～25営業日 |
| 支払条件: | T/T、L/C、ウェスタンユニオン |
| 供給の能力: | 月あたり5000個 |
|
詳細情報 |
|||
| 力: | 300W | 発光効果: | 100-120 lm/w |
|---|---|---|---|
| LEDチップブランド: | ライトライト | LED認証: | LM-80 |
| 入力電圧: | AC100-277V | 力率: | ≥0.95 |
| 認証: | CE、ROHS、CCC、ATEX | 防爆規格: | Ex db mb IIb T6 |
| 侵入保護: | IP65 | 天候保護: | WF2 |
| サージ保護: | 6KV | 演色評価数: | CRI ≥80 |
| ハウジング材質: | アルミニウム + テンプレートガラス | ビーム角の選択: | 30°/60°/90°（選択可能） |
| ケーブル仕様: | 1.0mm² | 表面仕上げ: | 塗装イエロー/グレー |
| 定数寿命: | 50,000時間(L90) | 動作温度: | -40℃～+60℃ |
| 動作湿度: | 10％〜90％RH | ||
| ハイライト: | 300W LED explosion proof light,ATEX IIb hazardous area fixture,LUMILEDS LM-80 explosion proof lighting |
||
製品の説明
50000H Long-Life 300W LED Explosion Proof Light
The RFEPL8280-300W-MB redefines long-term value in hazardous area illumination by combining an extraordinary 50,000-hour L90 rated service life with a versatile multi-beam optical system. This advanced fixture adapts to diverse installation geometries while maintaining exceptional performance in demanding environments.
Key Advantages: LUMILEDS LM-80 certified LED chips operated below maximum rating, advanced passive thermal management, and three precisely engineered beam angle options (30°, 60°, 90°) for optimal coverage patterns.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | RFEPL8280-300W-MB |
| Rated Power | 300W |
| Luminous Efficacy | 100-120 LM/W |
| LED Chip Brand | LUMILEDS (LM-80 Certified) |
| Lumen Maintenance | L90 @ 50,000 Hours (TM-21 Projected) |
| Input Voltage | AC100-277V, 50/60Hz |
| Power Factor | ≥0.95 |
| Color Rendering Index | CRI ≥80 |
| Beam Angle Options | 30° (Narrow) / 60° (Medium) / 90° (Wide) |
| Explosion Proof Standard | Ex db mb IIb T6 |
| Ingress Protection | IP65 |
| Housing Material | Die-Cast Aluminum + Tempered Glass |
| Operating Temperature | -40°C to +60°C |
| Certifications | CE, ROHS, CCC, ATEX |
Industrial Applications
This explosion-proof lighting solution is engineered for demanding hazardous area applications where reliability, longevity, and flexible beam control deliver maximum operational value.
- Refinery & Petrochemical Complexes: Standardized platform covering multiple area types with appropriate beam optics
- Mining Operations: 50,000-hour lifespan reduces costly production shutdowns for maintenance
- Pharmaceutical & Chemical Manufacturing: CRI 80+ color rendering for quality control inspection areas
- Food Processing Plants: Multi-beam flexibility adapts to changing equipment layouts
- Emergency Egress Lighting: Reliable illumination meeting life-safety regulatory requirements
Quality Assurance & Support
Each unit undergoes comprehensive quality control including LM-79 photometric testing and individual beam pattern verification. Products are packed in export-grade protective packaging with clear labeling.
Warranty: Comprehensive 3-year coverage for complete luminaire including LED modules, driver, and optical components.
Engineering Support: Complimentary lighting design services including photometric calculations and layout recommendations to meet OSHA, IEC, and local regulatory requirements.
