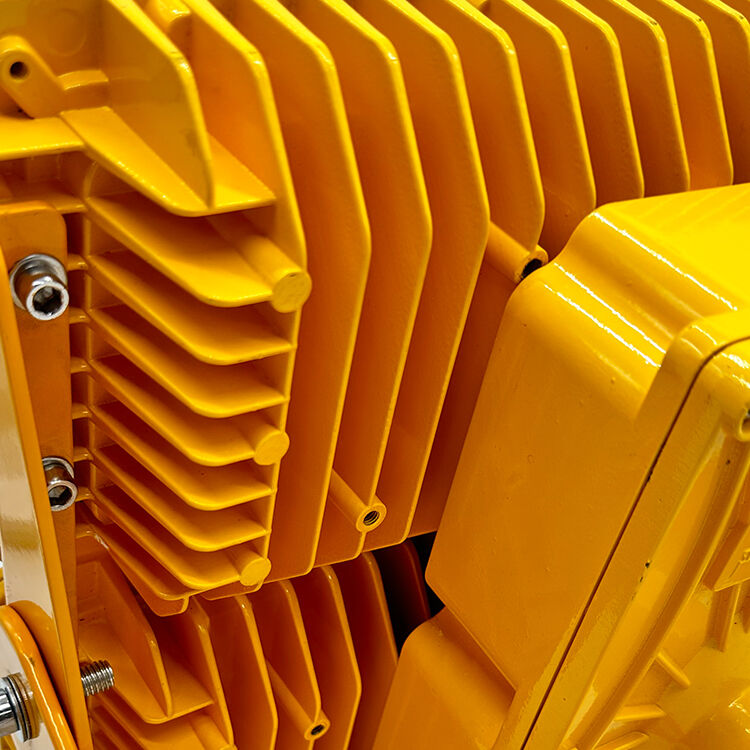

300W LED Explosion Proof Flood Light IECEx Drilling Rig Offshore Platform IP67 Marine IP67 Die-Cast Aluminum ADC12
商品の詳細:
| 起源の場所: | 広東省、中国 |
| ブランド名: | ECER |
| 証明: | IECEx Ex d IIC T6 Gb, ISO 9001:2015 |
| モデル番号: | EPFL-300W-DRL |
お支払配送条件:
| 最小注文数量: | 10個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | ボックスパッケージ+バブルまたはカスタマイズ |
| 受渡し時間: | 10-15 日または確認 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 5000個/月 |
|
詳細情報 |
|||
| 力: | 300W | 光束: | 39000lm |
|---|---|---|---|
| 効能: | 130lm/W | ビーム角度: | 90° |
| 色温度: | 5000K | LEDチップ: | ブリッジラックス SMD 3030 |
| IP等級: | IP67 | ハウジング材質: | マリングレードのコーティングを施したダイキャストアルミニウム ADC12 |
| 動作温度: | -40℃～+60℃ | 証明: | IECEx Ex d IIC T6 Gb |
| 寿命: | ≧50,000時間 L70 | 保証: | 5年 |
| ハイライト: | 300W LED explosion proof flood light,IECEx drilling rig offshore platform light,IP67 marine die-cast aluminum flood light |
||
製品の説明
300W LED Explosion Proof Flood Light - IECEx Drilling Rig Offshore Platform IP67 Marine
The EPFL-300W-DRL is a 300W LED explosion proof flood light delivering 39000lm luminous flux with 130lm/W efficiency. IECEx Ex d IIC T6 Gb certified with IP67 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with Marine-Grade Coating for demanding classified area applications.
Key Features
- 300W High-Efficiency Output - 39000lm total luminous flux at 130lm/W, replacing traditional HID fixtures with superior energy performance
- IECEx Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- Drilling Rig Optimized - Vibration-dampened mounting system rated for continuous 5-15Hz drill floor vibration, with redundant cable gland entries for harsh offshore duty
- IP67 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 300W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Offshore drilling rigs, jack-up platforms, semi-submersibles, and open-deck marine classified zones:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-300W-DRL |
| Power Consumption | 300W |
| Luminous Flux | 39000lm |
| Efficacy | 130lm/W |
| Beam Angle | 90° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP67 |
| Housing Material | Die-Cast Aluminum ADC12 with Marine-Grade Coating |
| Operating Temperature | -40°C to +60°C |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-300W-DRL design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
