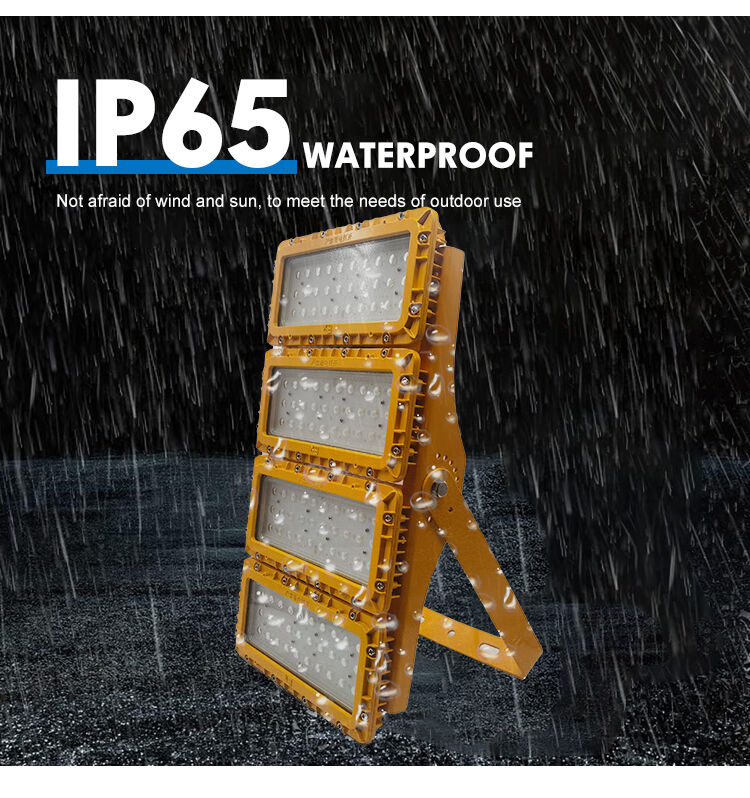

300W LED Explosion Proof Flood Light High Temperature T5 80°C Steel Mill Foundry Desert IP66 Die-Cast Aluminum ADC12
商品の詳細:
| 起源の場所: | 広東省、中国 |
| ブランド名: | ECER |
| 証明: | ATEX II 2G Ex d IIC T5 Gb, CE, ISO 9001:2015 |
| モデル番号: | EPFL-300W-HIT |
お支払配送条件:
| 最小注文数量: | 10個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | ボックスパッケージ+バブルまたはカスタマイズ |
| 受渡し時間: | 10-15 日または確認 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 5000個/月 |
|
詳細情報 |
|||
| 力: | 300W | 光束: | 33000lm |
|---|---|---|---|
| 効能: | 110lm/w | ビーム角度: | 90° |
| 色温度: | 5000K | LEDチップ: | ブリッジラックス SMD 3030 |
| IP等級: | IP66 | ハウジング材質: | 高温コーティングを施したダイキャストアルミニウム ADC12 |
| 動作温度: | -20℃～+80℃ | 証明: | ATEX II 2G Ex d IIC T5 Gb |
| 寿命: | ≧50,000時間 L70 | 保証: | 5年 |
| ハイライト: | 300W explosion proof LED flood light,high temperature explosion proof light 80°C,die-cast aluminum explosion proof flood light |
||
製品の説明
300W LED Explosion Proof Flood Light High Temperature T5 80°C Steel Mill Foundry Desert IP66 Die-Cast Aluminum ADC12
The EPFL-300W-HIT is a 300W LED explosion proof flood light delivering 33000lm luminous flux with 110lm/W efficiency. ATEX II 2G Ex d IIC T5 Gb certified with IP66 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with High-Temp Coating for demanding classified area applications.
Key Features
- 300W High-Efficiency Output - 33000lm total luminous flux at 110lm/W, replacing traditional HID fixtures with superior energy performance
- ATEX II 2G Ex d IIC T5 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- T5 High-Temperature Rating - Certified for continuous operation at 80°C ambient with high-temperature silicone gaskets and derated driver electronics for extended service life in extreme heat
- IP66 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 300W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Steel mills, foundries, glass manufacturing, desert oil and gas installations, and high-ambient industrial zones:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-300W-HIT |
|---|---|
| Power Consumption | 300W |
| Luminous Flux | 33000lm |
| Efficacy | 110lm/W |
| Beam Angle | 90° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 with High-Temp Coating |
| Operating Temperature | -20°C to +80°C |
| Certification | ATEX II 2G Ex d IIC T5 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-300W-HIT design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
