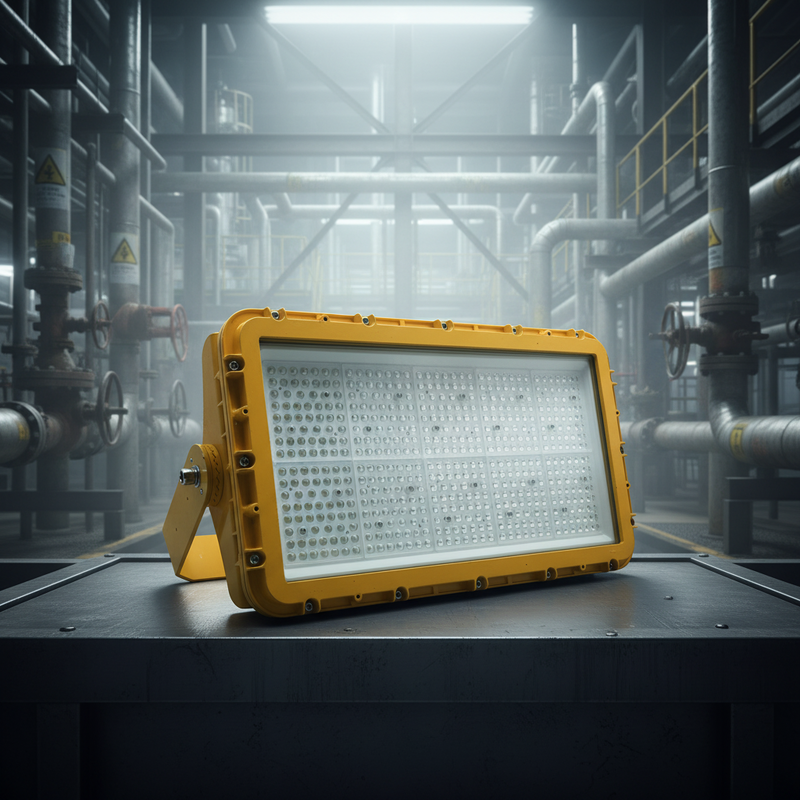

300W LED Explosion Proof Flood Light 30° Narrow Beam Long-Range
商品の詳細:
| 起源の場所: | 広東省、中国 |
| ブランド名: | ECER |
| 証明: | ATEX Ex db mb IIB T6, CE, ROHS, CCC, ISO 9001:2015 |
| モデル番号: | RFEPL8280-300W-NB30 |
お支払配送条件:
| 最小注文数量: | 10個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | ボックスパッケージ+バブルまたはカスタマイズ |
| 受渡し時間: | 10-15 日または確認 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 5000個/月 |
|
詳細情報 |
|||
| 力: | 300W | 光効率: | 100-120lm/w |
|---|---|---|---|
| LEDチップ: | ルミレスSMD（LM-80） | ビーム角度: | 30° |
| 入力電圧: | AC100-277V | IP等級: | IP65 |
| CRI: | 80以上 | 力率: | ≥0.95 |
| 材料: | アルミニウム + テンプレートガラス | 防爆マーク: | Ex db mb IIB T6 - IP65 - WF2 |
| 雷保護: | 6KV | 証明: | ATEX, CE, ROHS, CCC |
| 一生: | 50,000時間 | 動作温度: | -40℃～+60℃ |
| 塩スプレーテスト: | 500時間（ステンレス鋼） | ||
| ハイライト: | 300W explosion proof LED flood light,narrow beam explosion proof light,long-range explosion proof floodlight |
||
製品の説明
300W LED Explosion Proof Flood Light 30° Narrow Beam Long-Range
The RFEPL8280-300W-NB30 is a 300W LED explosion proof flood light from the RFEPL8280 series, featuring Narrow 30° long-range spot beam with LUMILEDS SMD chip technology delivering 100-120lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, 6KV lightning protection, and stainless steel hardware passing 500-hour salt spray testing.
Key Features
- LUMILEDS SMD Chip Technology - Premium LM-80 tested LED chips delivering 100-120lm/W with CRI ≥80 for accurate color rendering in hazardous environments
- ATEX IIB T6 Certified - Ex db mb IIB T6 explosion-proof rating for IIA, IIB, IIC explosive atmospheres, temperature classes T1-T6, Zone 1/Zone 2 gas and Zone 21/Zone 22 dust
- 30° Beam Configuration - Narrow 30° long-range spot beam optimized for specific application requirements
- 180° Adjustable Mounting Bracket - Flexible angle adjustment for precise light positioning in any installation scenario
- Die-Cast Fin Heat Dissipation - Advanced thermal management with high-conductivity aluminum substrate ensuring reliable 300W continuous operation
- 6KV Lightning Protection - Built-in surge protection for exposed outdoor installations in lightning-prone regions
- High Transmittance Tempered Glass - Safety glass lens with ≥92% light transmission and impact resistance
- All Stainless Steel Hardware - 500-hour salt spray certified fittings for long-term corrosion resistance
- 30° Precision Narrow Beam - Ultra-focused beam for maximum throw distance exceeding 100 meters, ideal for high mast tower and chimney stack illumination
- IP65 Waterproof WF2 - Fully sealed against dust and water jets, corrosion-resistant for harsh industrial atmospheres
- Universal AC 100-277V Input - Power factor ≥0.95, compatible with global electrical distribution systems
6-in-1 Versatile Mounting
Applications
Engineered for high mast towers, chimney stacks, and long-distance spot illumination in petrochemical facilities:
Oil extraction, refining and petrochemical processing
Offshore platforms, FPSOs and drilling rigs
Chemical storage, mixing and processing facilities
Electric power generation and distribution stations
Military and defense hazardous installations
Combustible dust environments (Zone 21, Zone 22)
Emergency and normal lighting in classified areas
Technical Specifications
| Model Number | RFEPL8280-300W-NB30 |
| Item No. | RFEPL8280 |
| Power | 300W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 30° |
| CRI | ≥80 |
| Power Factor | ≥0.95 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum + Tempered Glass |
| IP Rating | IP65 |
| Finish | Painting Yellow / Grey |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series combines ATEX-certified safety with LUMILEDS LED efficiency. Each unit is factory-tested for explosion-proof integrity, photometric performance, and 500-hour salt spray corrosion resistance. With six mounting configurations and three beam angle options, the RFEPL8280 platform adapts to the full spectrum of hazardous area lighting requirements.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
