300W LED Explosion Proof Flood Light 60° Wall Mount Process Pipe Rack Yellow ATEX IIB T6 IP65 RFEPL8280 Lighting
商品の詳細:
| 起源の場所: | 広東省、中国 |
| ブランド名: | ECER |
| 証明: | ATEX Ex db mb IIB T6, CE, ROHS, CCC |
| モデル番号: | RFEPL8280-300W-WL60 |
お支払配送条件:
| 最小注文数量: | 10個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | ボックスパッケージ+バブルまたはカスタマイズ |
| 受渡し時間: | 10-15 日または確認 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 5000個/月 |
|
詳細情報 |
|||
| 力: | 300W | 光効率: | 100-120lm/w |
|---|---|---|---|
| LEDチップ: | ルミレスSMD（LM-80） | ビーム角度: | 60° |
| 色温度: | 5000K | IP等級: | IP65 |
| 防爆マーク: | Ex db mb IIB T6 - IP65 - WF2 | 雷保護: | 6KV |
| 材料: | アルミニウム ADC12 + 強化ガラス | 仕上げる: | 黄色 |
| 証明: | ATEX, CE, ROHS, CCC | 一生: | 50,000時間 |
| 動作温度: | -40℃～+60℃ | ||
| ハイライト: | 300W LED Explosion Proof Flood Light,ATEX IIB T6 IP65 Flood Light,Wall Mount Explosion Proof Lighting |
||
製品の説明

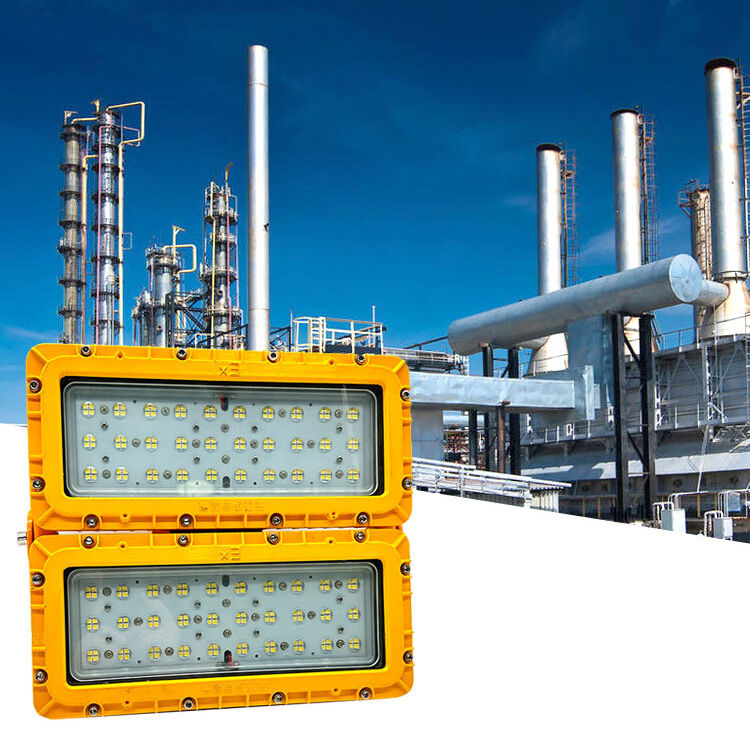

300W LED Explosion Proof Flood Light - 60° Wall Mount Process Pipe Rack Yellow RFEPL8280 Series
The RFEPL8280-300W-WL60 is a 300W LED explosion proof flood light from the RFEPL8280 series, delivering 36000lm luminous flux with 120lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, this Yellow finish floodlight features LUMILEDS SMD chip technology (LM-80 tested), 6KV lightning protection, and all-stainless-steel hardware passing 500-hour salt spray testing.
Key Features
- LUMILEDS SMD Technology - LM-80 tested premium LED chips delivering 120lm/W with CRI ≥80 and 50,000-hour L70 lifespan
- ATEX Ex db mb IIB T6 Certified - Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres, temperature classes T1-T6
- 60° Beam Configuration - 60° Wall Mount Process Area for precise light distribution
- Yellow Paint Finish - Durable powder coat finish with 500-hour salt spray certification on all stainless steel hardware
- Die-Cast Fin Heat Dissipation - Advanced aluminum substrate thermal management for reliable 300W continuous operation
- 6KV Lightning Protection - Built-in surge suppression for exposed outdoor industrial installations
- 180° Adjustable Bracket - Flexible angle adjustment with six mounting configurations available
- IP65 Waterproof WF2 - Sealed against dust and water jets with corrosion-resistant design
- Universal AC 100-277V - Power factor ≥0.95, compatible with global electrical systems
- CE, ROHS, CCC Certified - Full international compliance for global deployment
Applications
Suitable for Wall-mounted process unit illumination, pipe rack lighting:
- Oil extraction, refining and petrochemical processing
- Offshore platforms, FPSOs and drilling rigs
- Chemical storage, mixing and manufacturing facilities
- Electric power generation and distribution stations
- Military and defense hazardous installations
Technical Specifications
| Model Number | RFEPL8280-300W-WL60 |
| Item No. | RFEPL8280 |
| Power | 300W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 60° |
| CRI | ≥80 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum ADC12 + Tempered Glass |
| Finish | Yellow |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series delivers industrial-grade hazardous area illumination with LUMILEDS LED efficiency and ATEX-certified safety. Every unit is factory-tested for explosion-proof integrity and photometric performance.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
